Cloudray

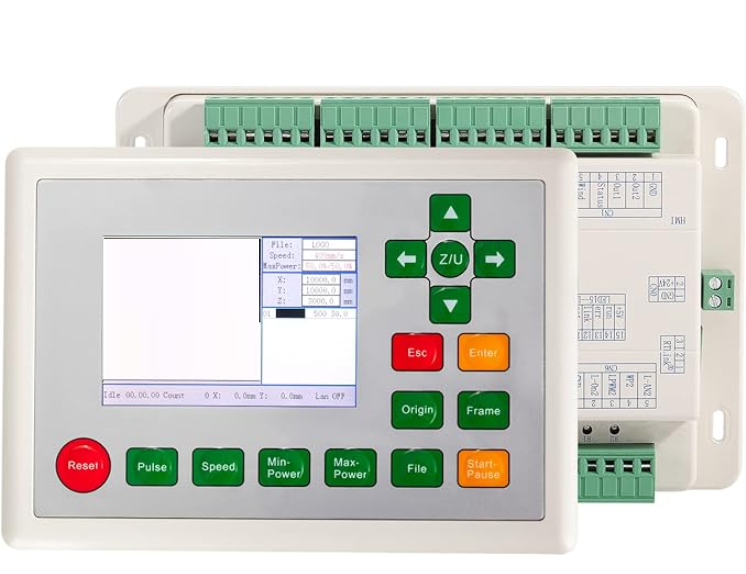

Ruida DSP Controller RDC6442S for CO2 Laser Engraver Engraving Machines

Ruida DSP Controller RDC6442S for CO2 Laser Engraver Engraving Machines

Regular price $599.00 AUD
Regular price $665.00 AUD Sale price $599.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Ruida RDC6442S system is a new generation system for 4-Axis control of laser engraving and cutting.
    • Digital Laser Control Signals:
    (1) TTL level output, 50 mA, Drive Capability
    (2) PWM frequency 2K-50K for adjustable
    (3) PWM duty ratio is 1% ~ 99%, adjustable
    (4) PWM value is up to 5.0 V
    • One-Way 24V Power Supply, >2A
    • Motor Control Signal: Common-anode Output, Drive Capability 20 mA. Motor control pulse frequency: Max.500KHZ

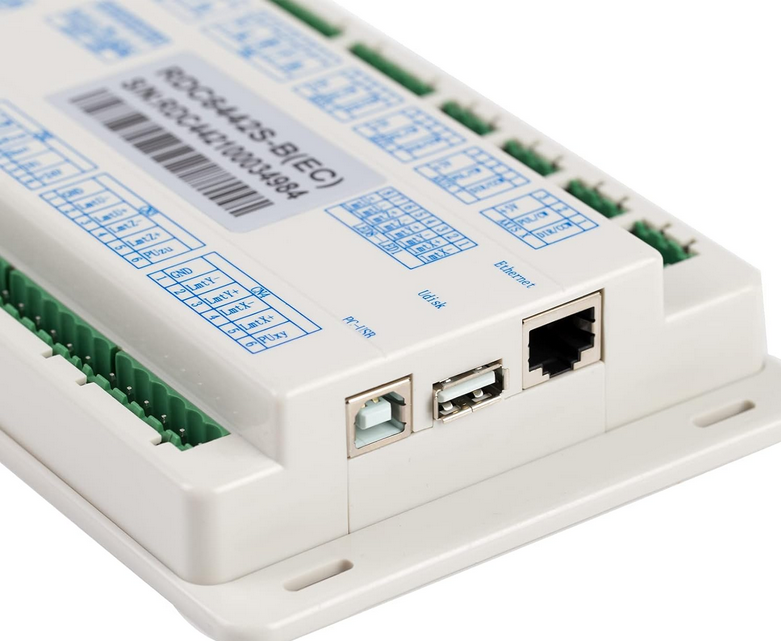

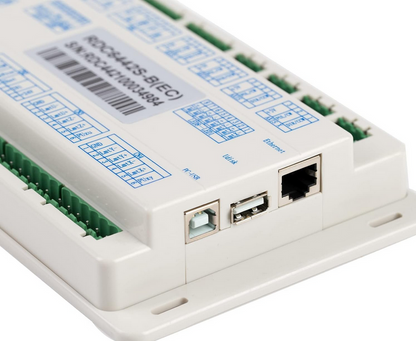

    • 10/100M Ethernet + USB 2.0 Control.
    • Interpolation: Linear/circular arc/B spline, accuracy + / - 0.5 pulse
    • Output: 4-channel, photoelectric isolated OC gate output, the max. drive capability 500mA drive capability (with follow-current protection).
    • Input: 4-channel, photoelectric isolated input, compatible with 5V/ 12V / 24V logic level
    • 6442G: Standard / 6442S: Double Head Linkage
