BlazeCut T-Series Automatic Fire Suppression System
BlazeCut T-Series Automatic Fire Suppression System
The BlazeCut system operates automatically independent of any power supply by detecting higher temperatures. When the temperature in the protected enclosure rises to a critical threshold, the detection tube melts down at the point where the affecting temperature is the highest. Melting the tube creates a hole releasing the entire extinguishing agent stored in the tube onto the source of the fire.

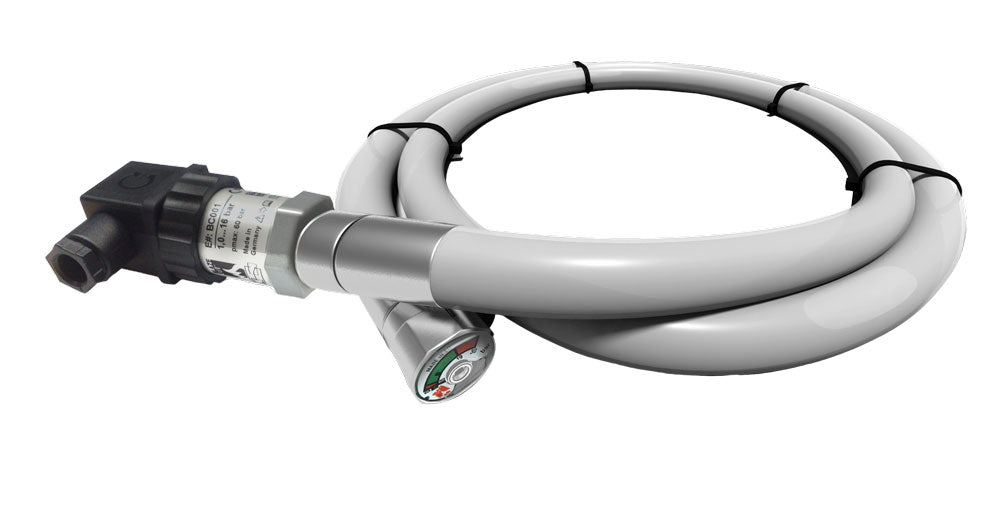

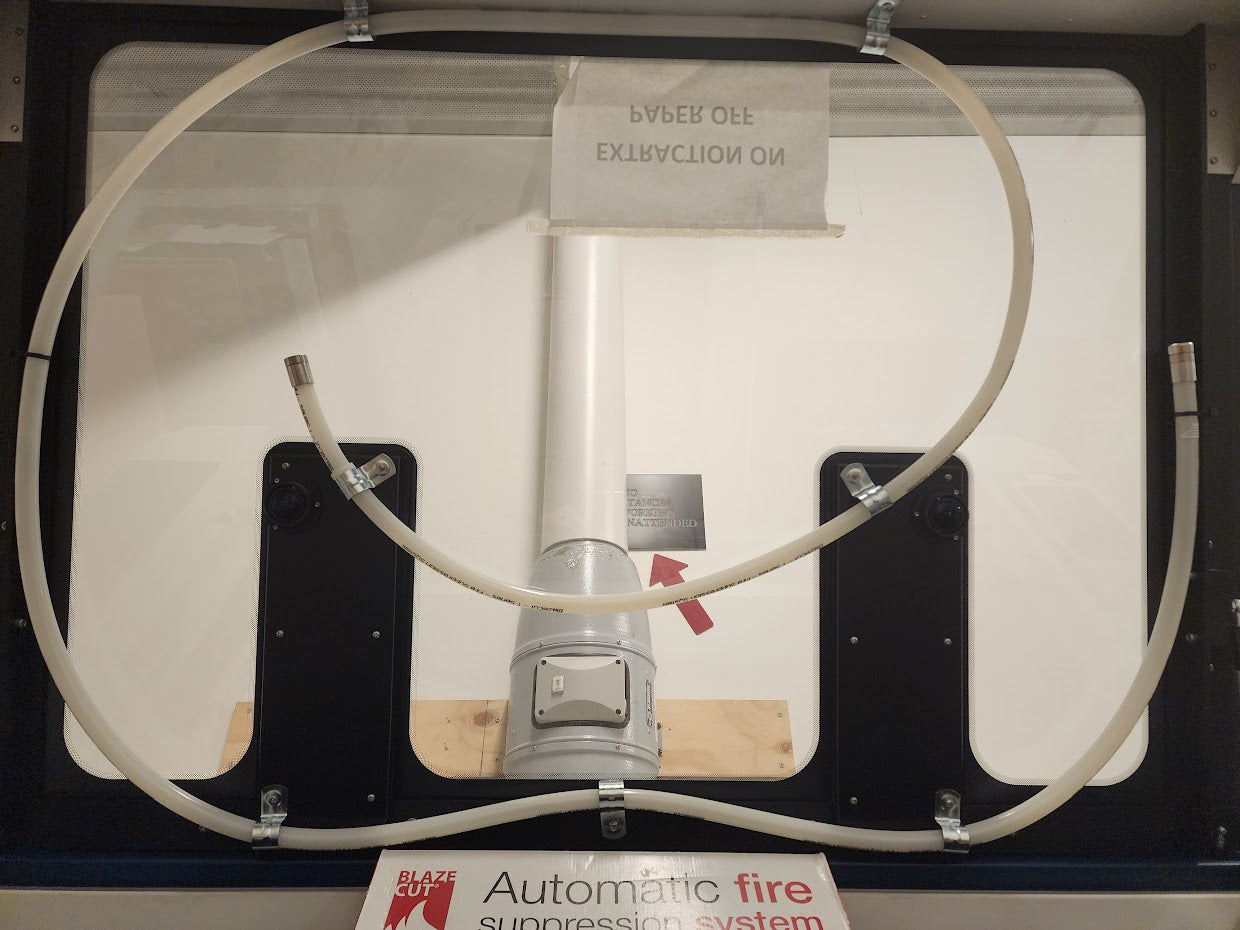

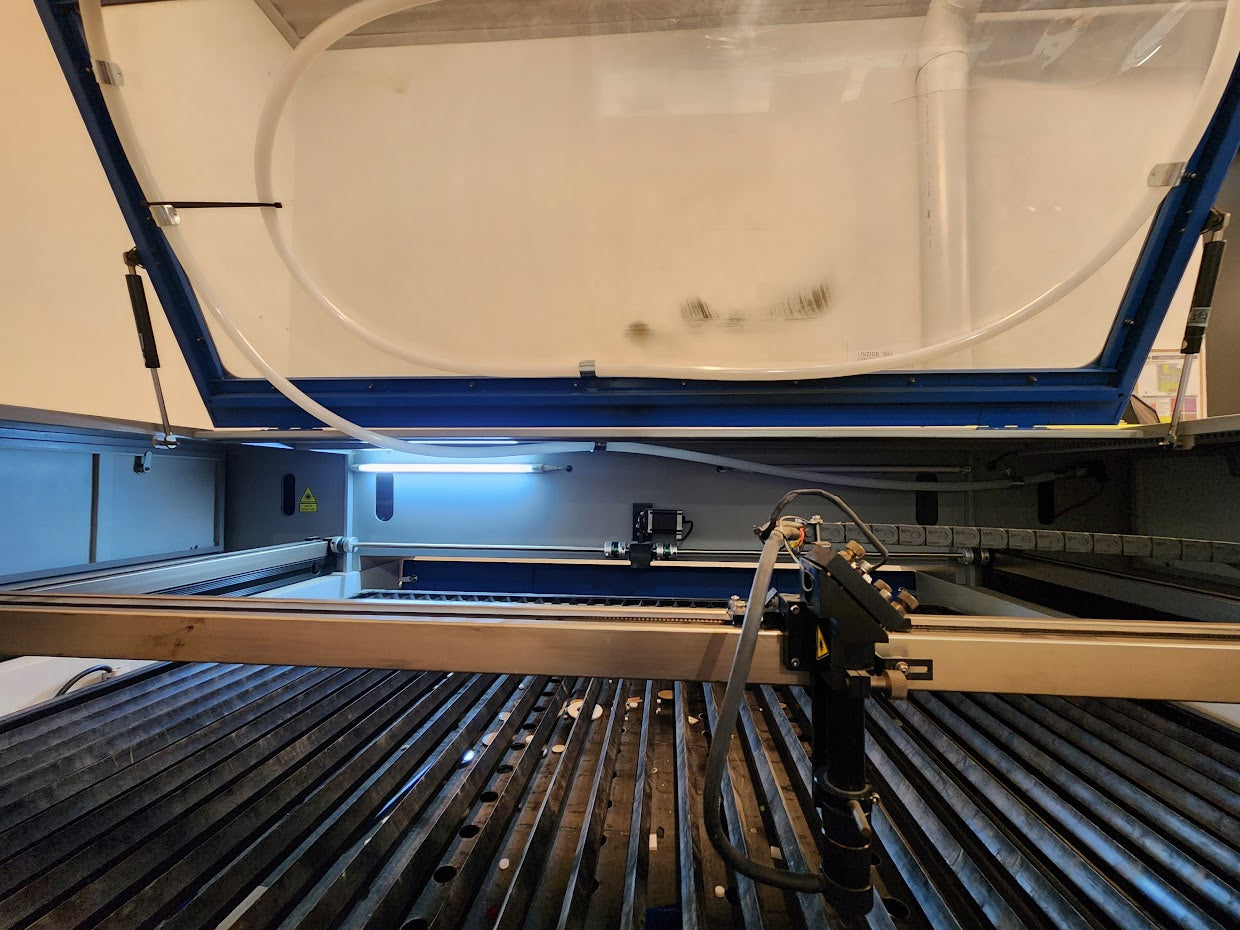

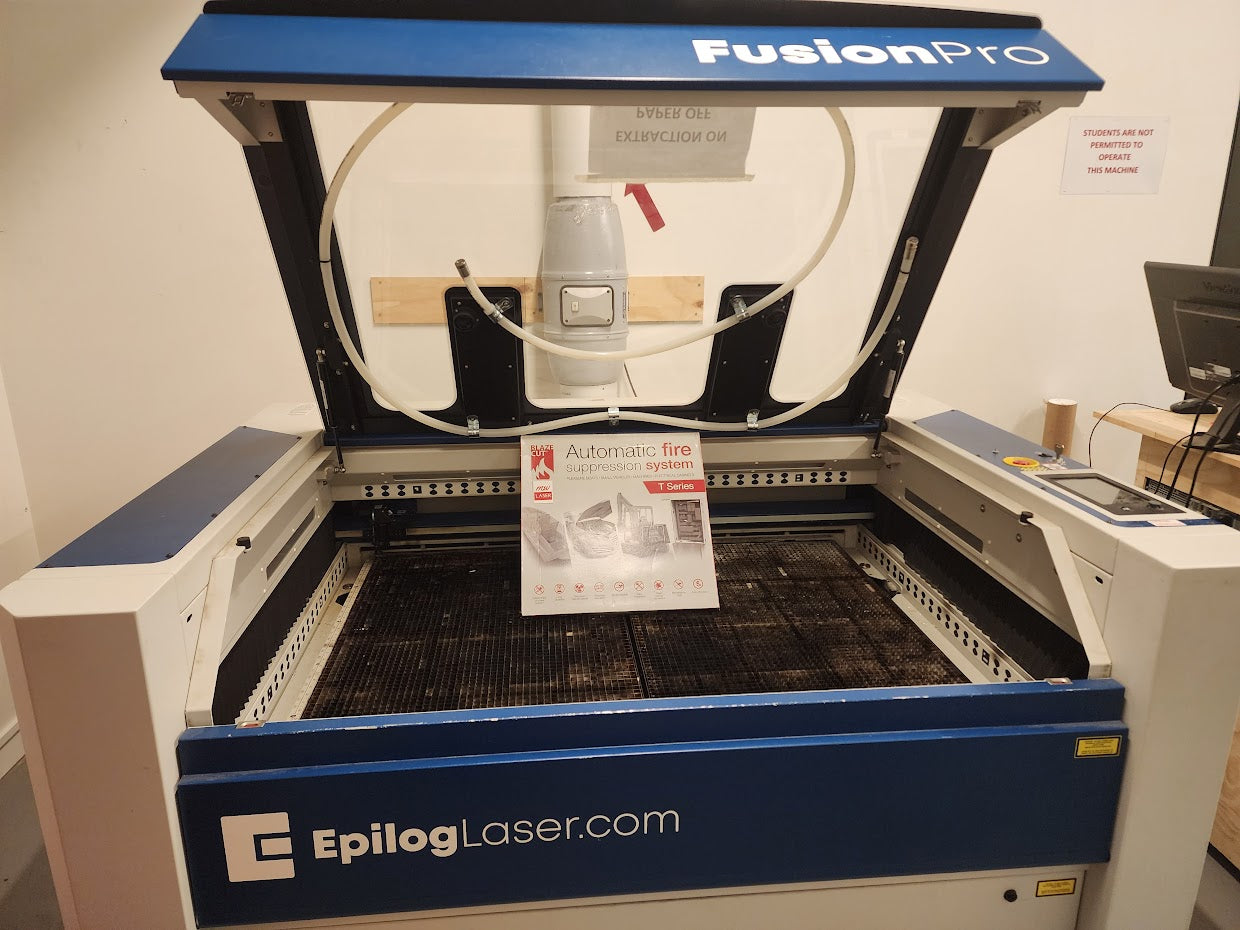

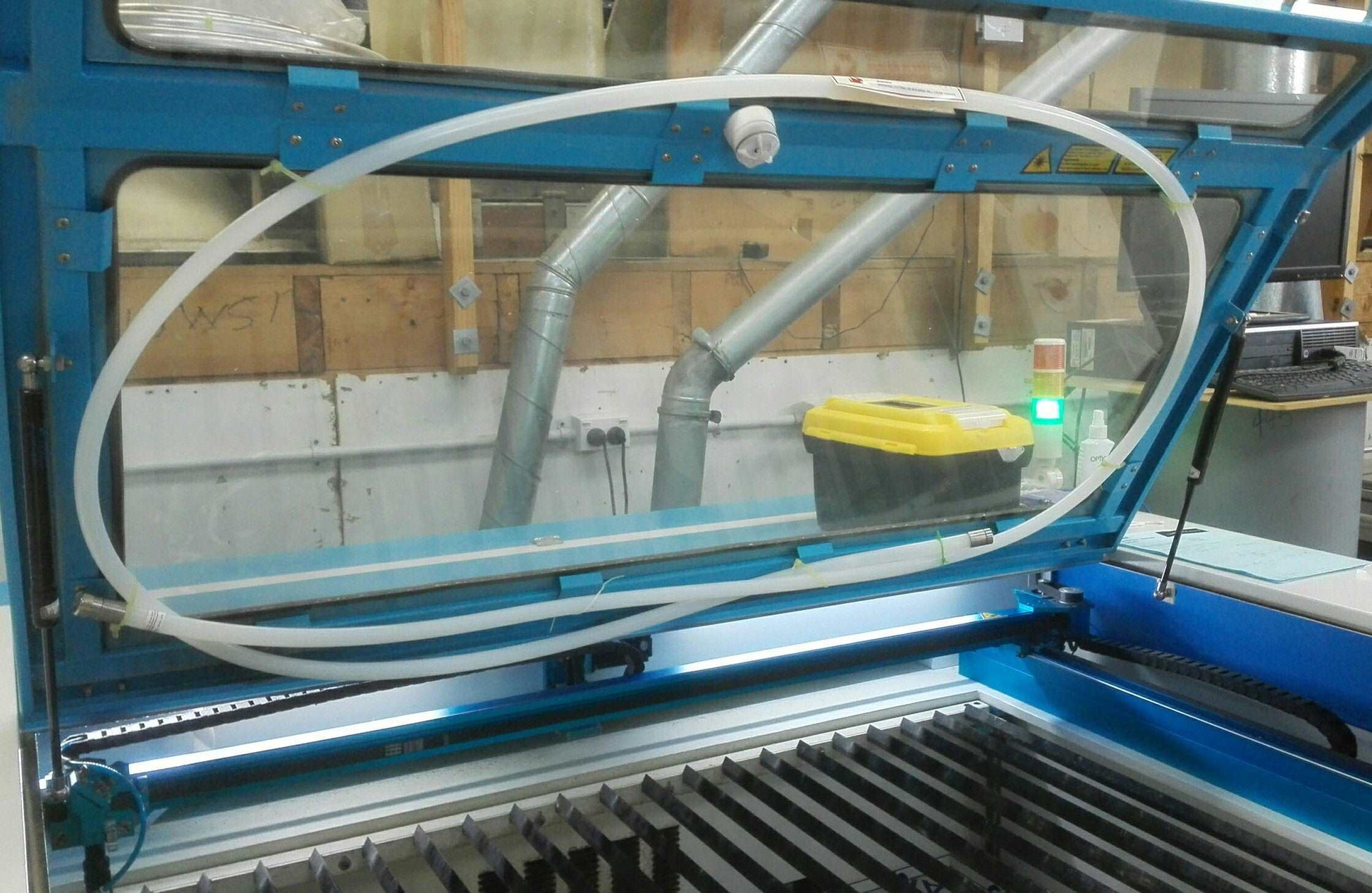

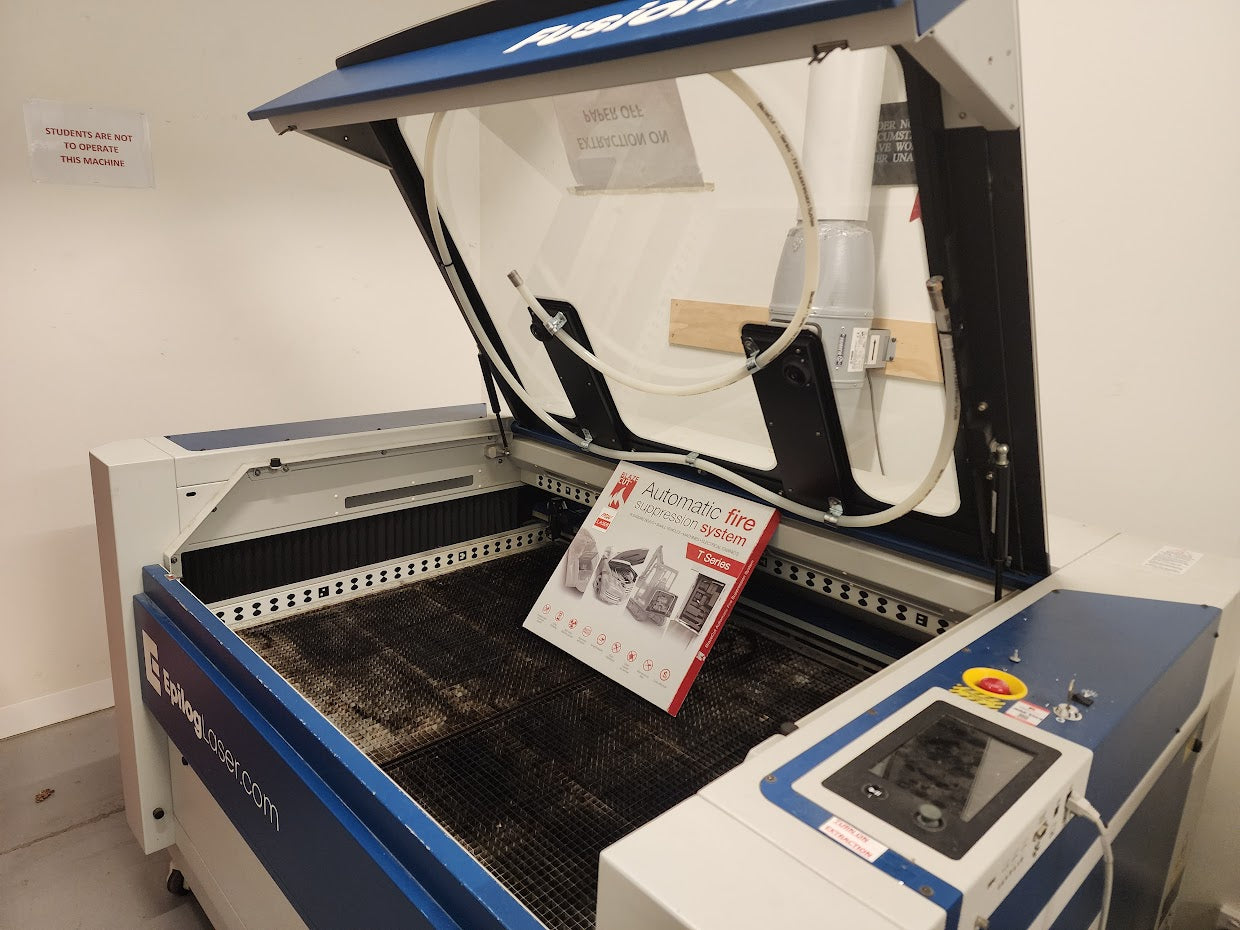

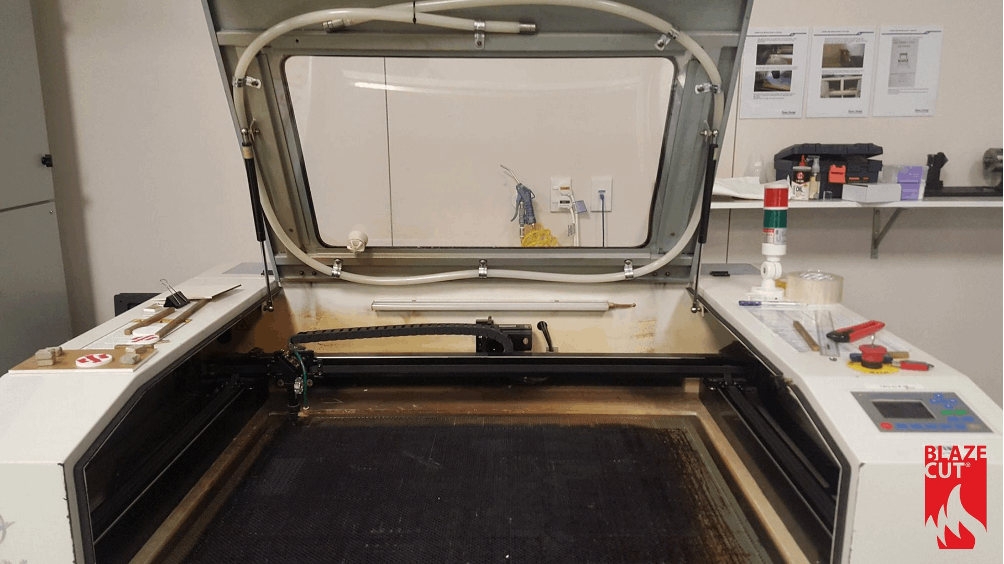

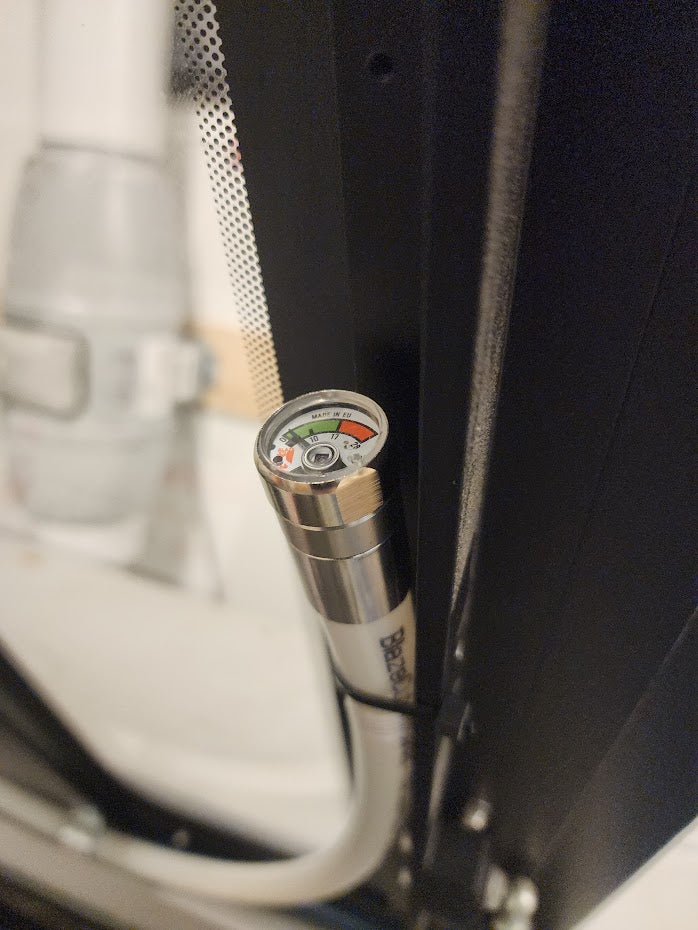

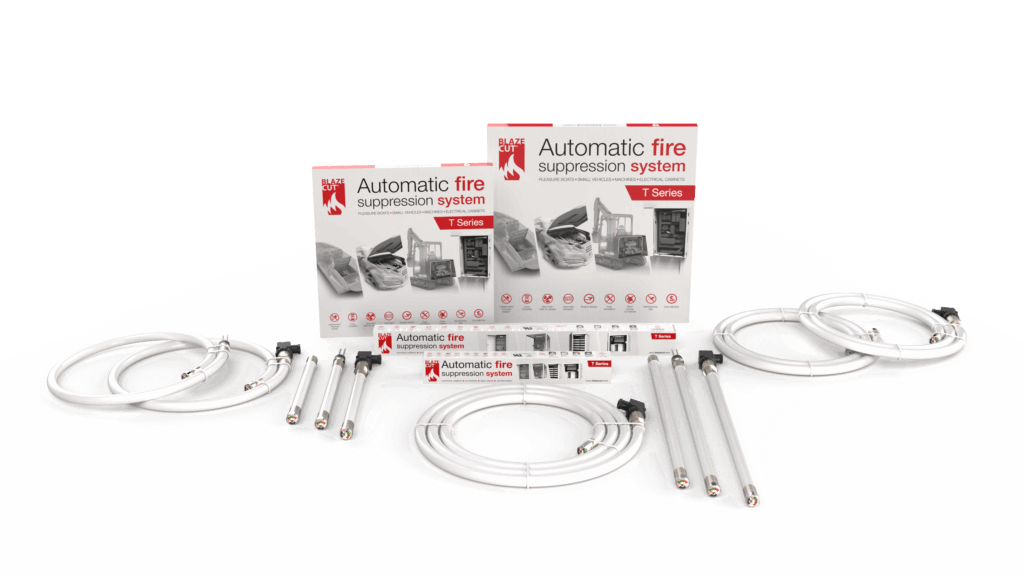

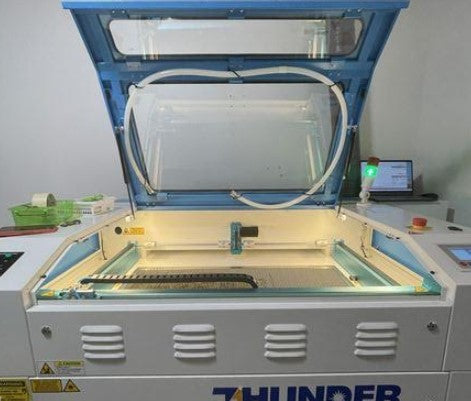

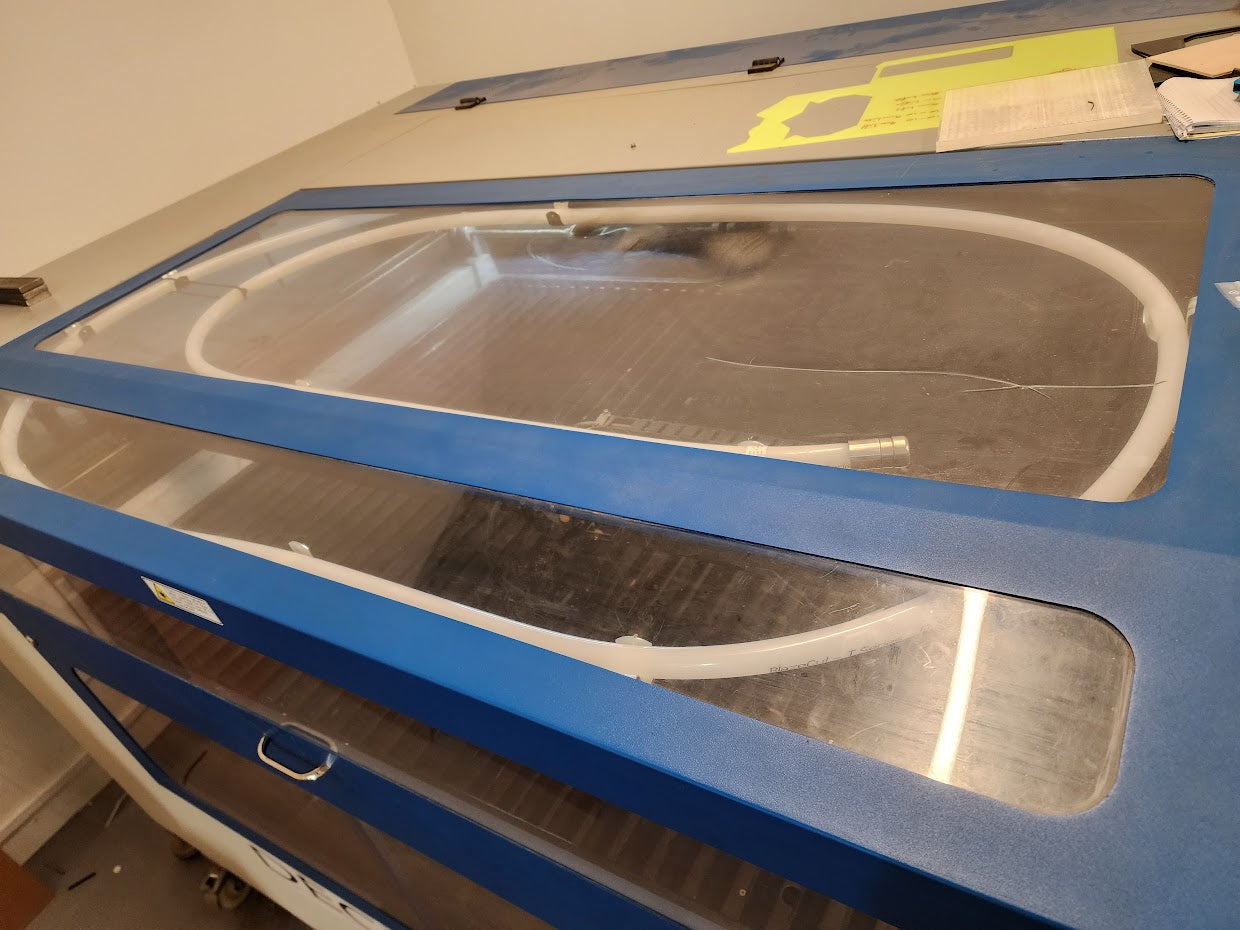

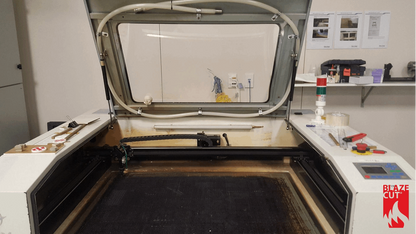

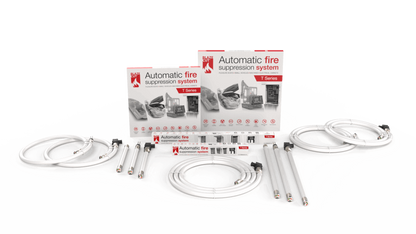

The system consists of a heat sensitive tube made of special plastic which is closed by a stainless-steel fitting on each end. The tube has both storage and detection function which means that the extinguishing agent is stored directly in the tube and no additional storage device like cylinder is needed. The system is supplied with a clean agent HFC-227ea. Typical applications include laser machines, 3D printers, electrical enclosures or engine compartments of vehicles, machines or pleasure boats.
BlazeCut T-Series Brochure BTS01-2204-EN-General.pdf (blazecut.com)
BlazeCut T Series Laser Application Guide PDF
Model Selection Guide
Use the Calculator below to assist you in selecting the correct T-Series Model Automatic Fire Suppression System
T025 - For Machines Up to 0.09m3
T050 - For Machines Up to 0.18m3
T100 - For Machines Up to 0.46m3
T200 - For Machines Up to 0.91m3
T300 - For Machines Up to 1.37m3

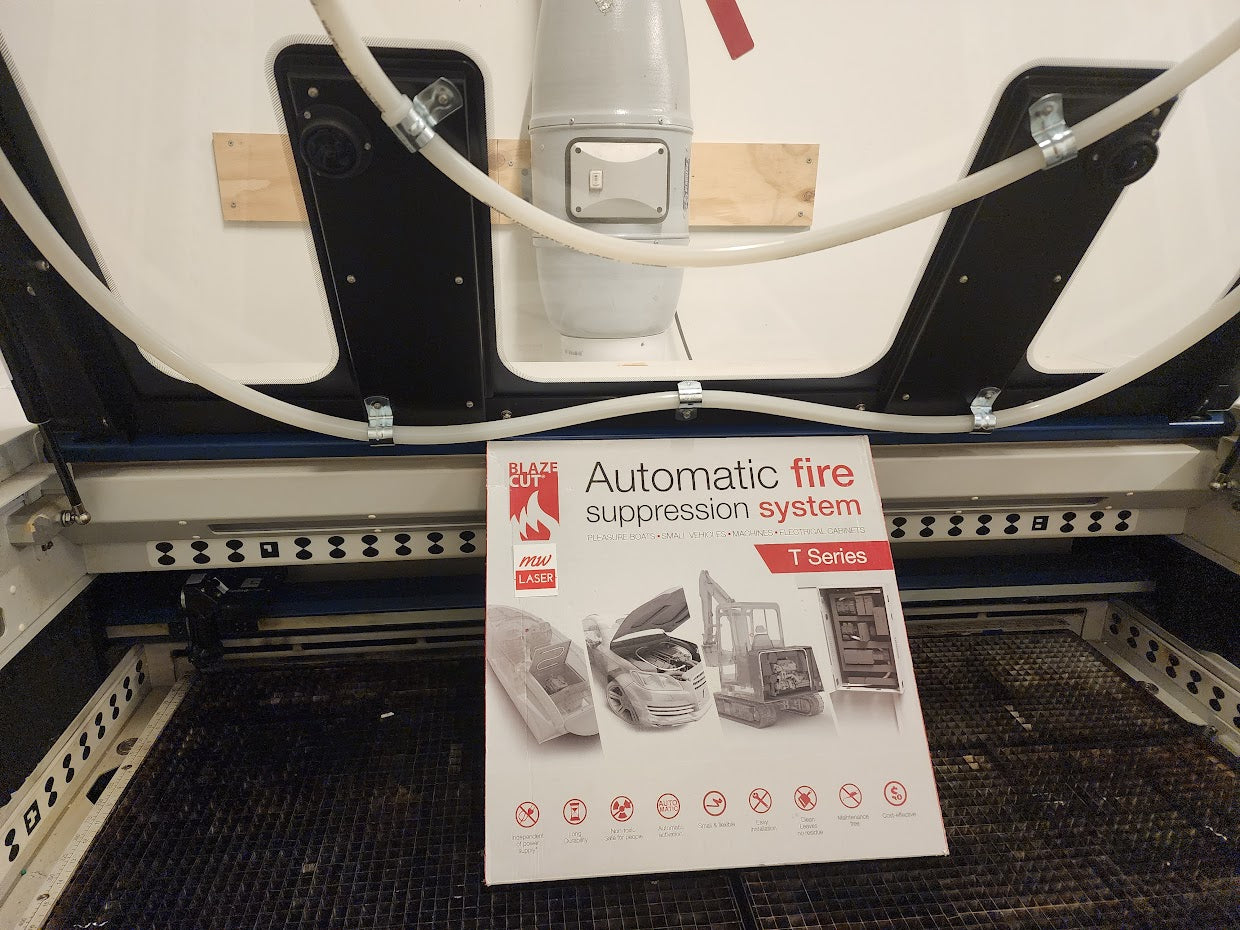

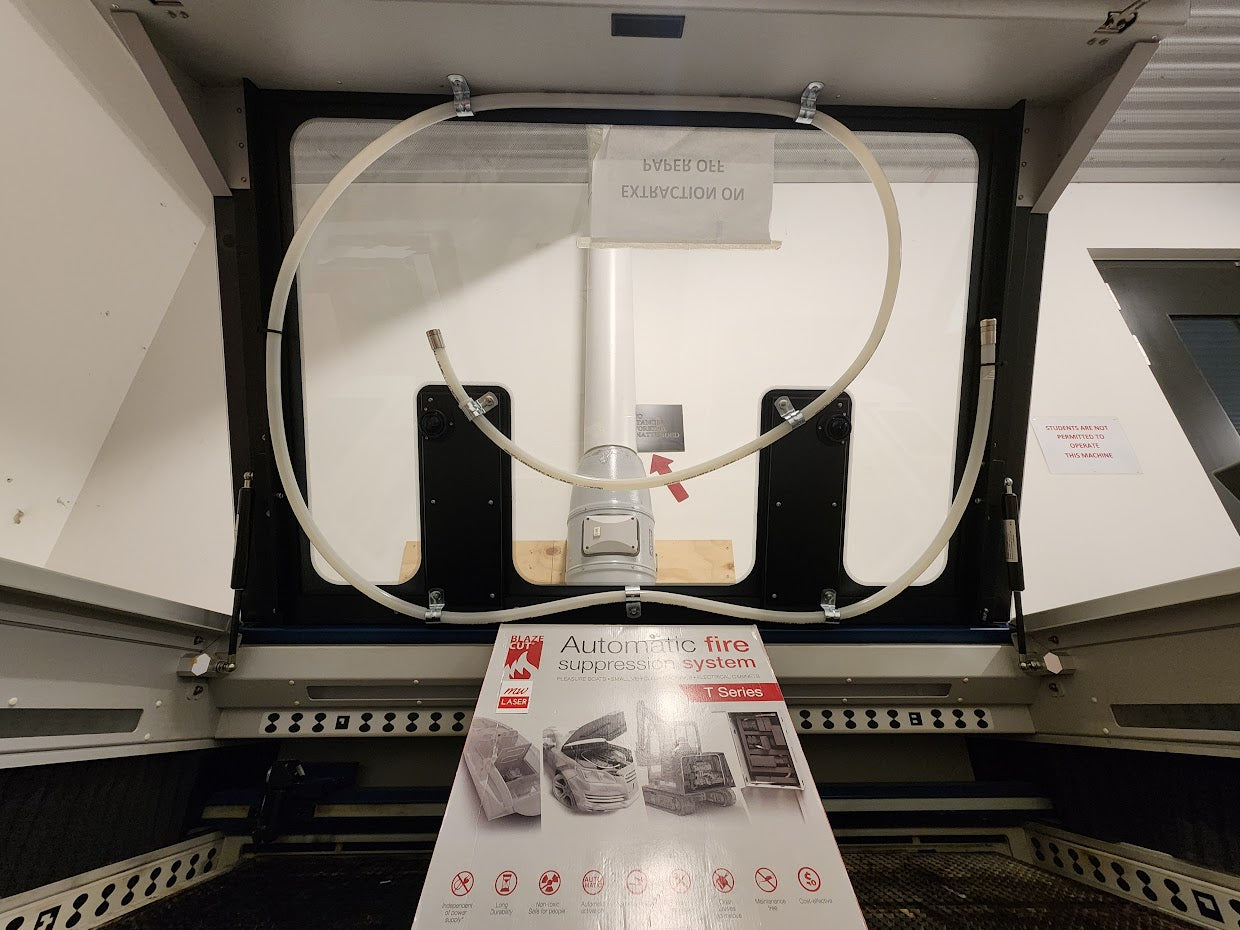

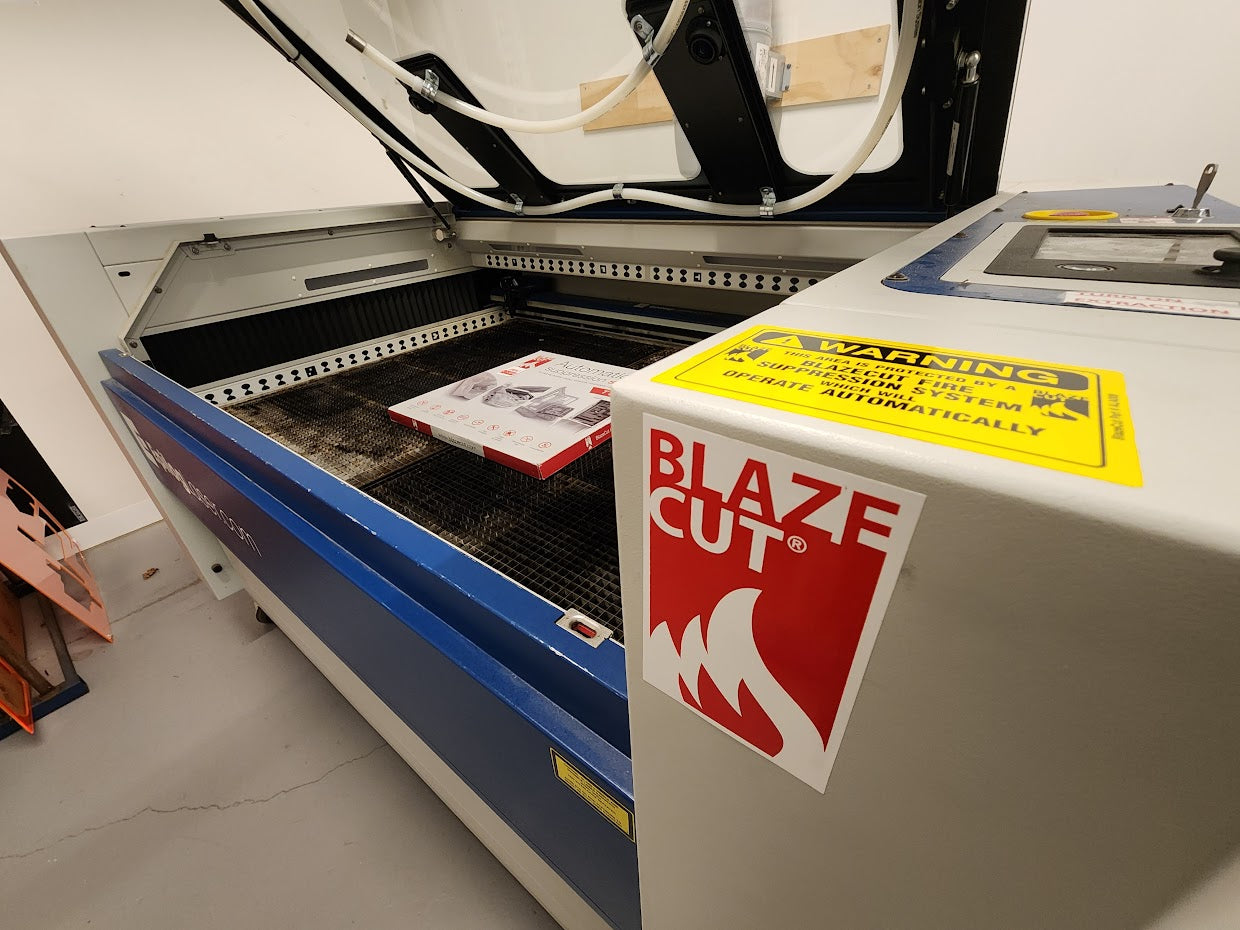

T400 - For Machines Up to 1.82m3
T500 - For Machines Up to 2.28m3

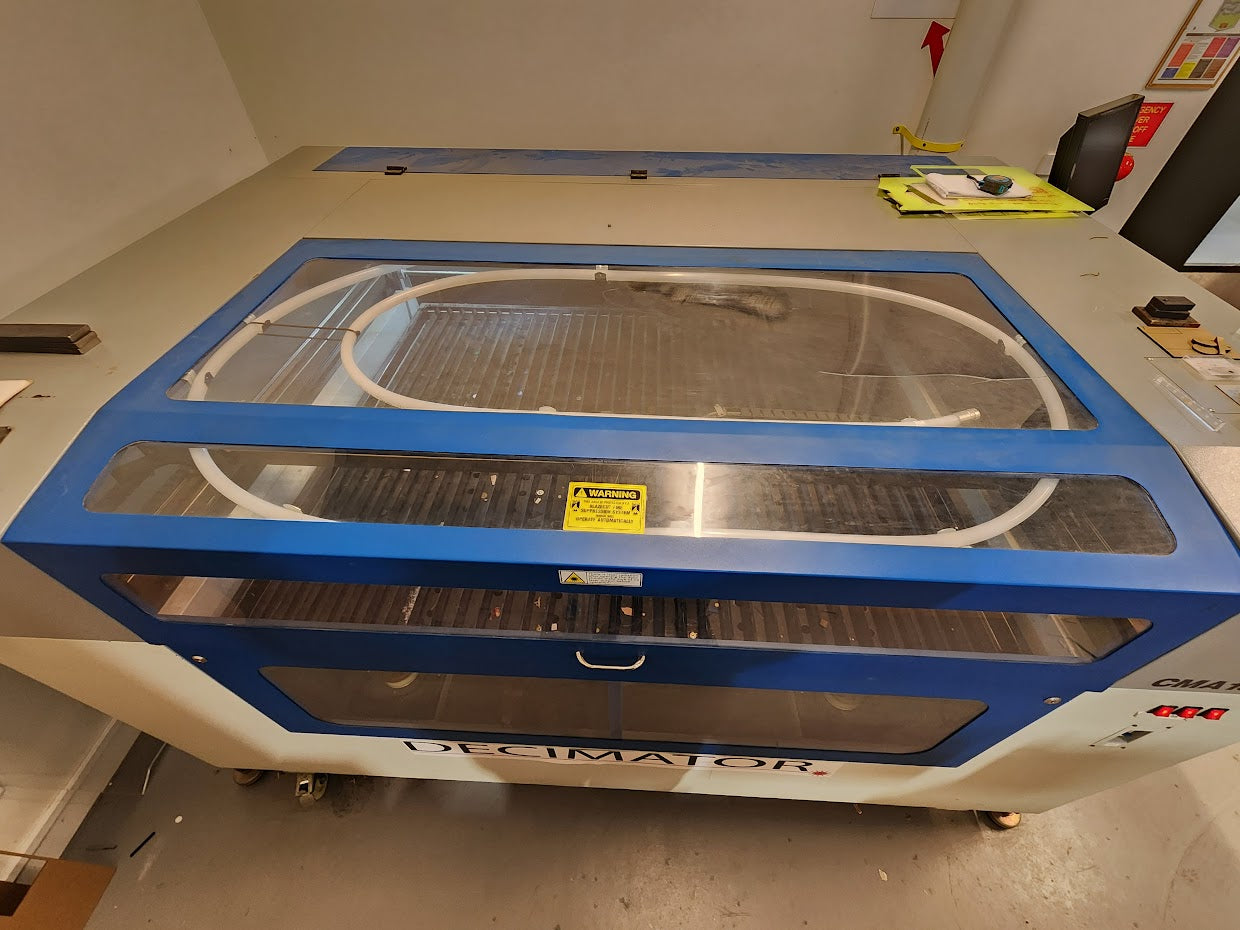

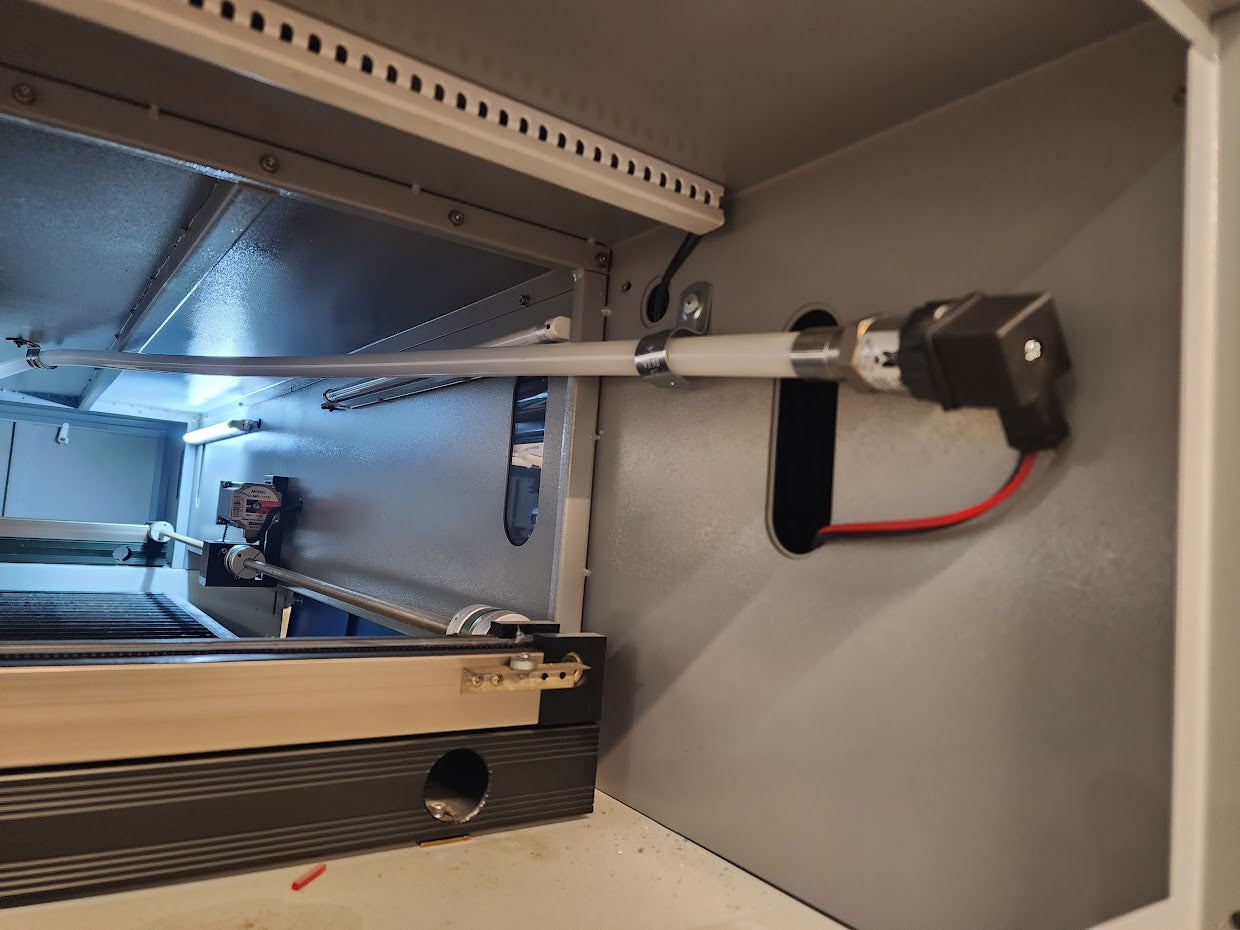

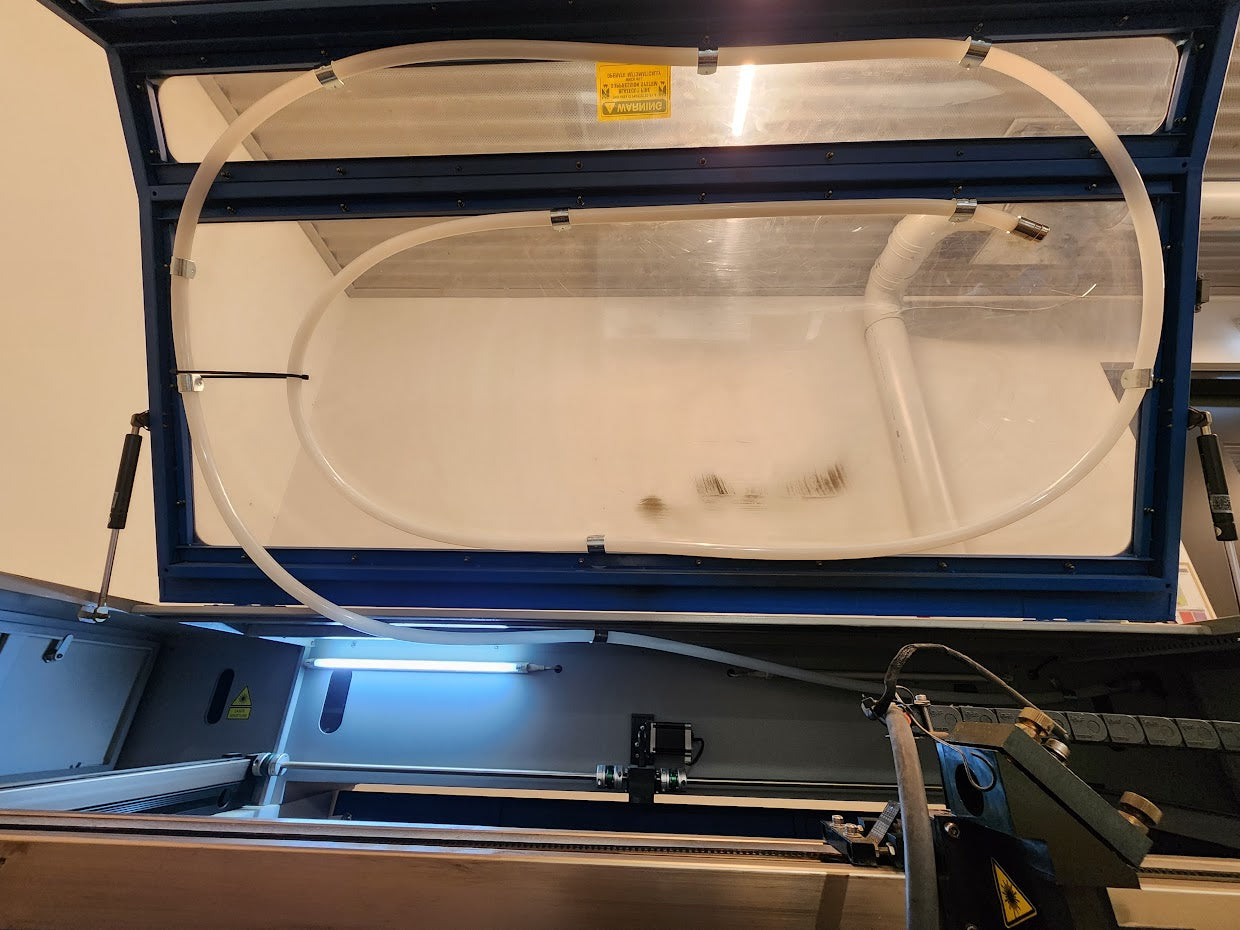

T600 - For Machines Up to 2.73m3
Need Assistance? Please contact us with the dimensions of your machine/enclosure to provide additional assistance with selecting the right model BlazeCut Fire Suppression System.
Cubic Meter Calculator
Enter the dimensions in centimeters:
