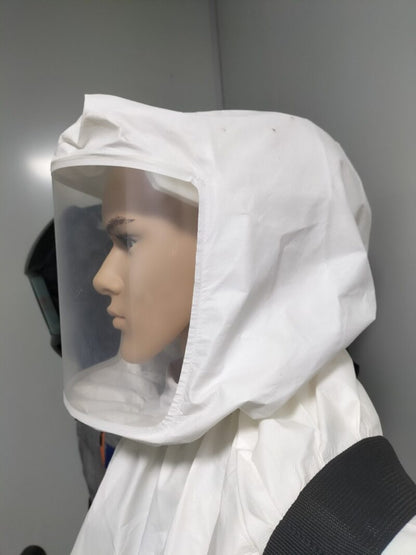

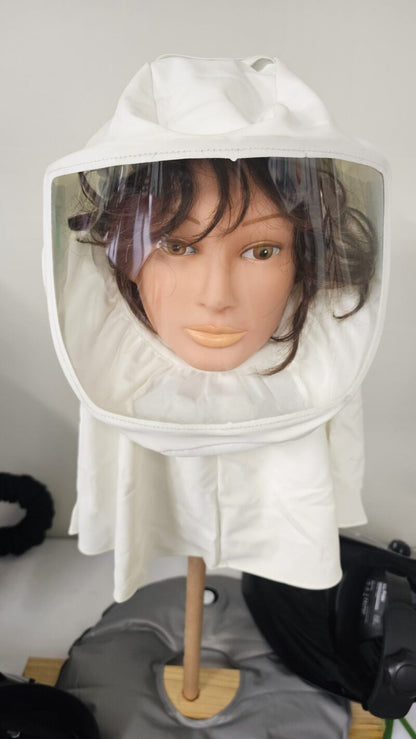

Dust Hood Respirator System (PAPR) Complete Kit

Air Purified Dust Hood Respirator System (PAPR) Complete Suit

Ultra clear large window – wider horizons

Easy to operate. comfortable and lightweight.

All round eye and face protection.

It is used for daily protection against droplets and dust.

Some examples: food processing, cleaning operations, dust prevention in construction, pollen protection, etc.

Advantages: PP/PE is lightweight and can prevent the splashing of larger particles or liquids (such as saliva and dust).

Restriction: Do not expose to organic solvents or strong acids and alkalis (such as paint spray, chemical reagents).

Disposable medical protective equipment

Some examples: Temporary protection during an epidemic and basic medical examinations (in non-high-risk infection environments).

Advantages: It can be disinfected (such as by wiping with alcohol), but long-term contact with chemical disinfectants may cause aging.

Light industrial spraying (non-chemical environment)

Some examples: water-based paint spraying, low-toxicity powder spraying (such as latex paint).

Note: Ensure that the coating does not contain organic solvents (such as acetone, xylene), otherwise PP/PE will swell and be damaged.

Approvals: The system complies with the requirements of PPE Regulation 2016/425 and European Standard EN 12941: 1998+A2:2008 class TH2 P R S L .

The Respiratory System is designed to provide a supply of filtered air via a breathing tube to a dust proof head piece.

The equipment can be used in environment that requires a class TH3 P breathing protection device. It protects against particulate contamination.

Powered filtering device: ● EN 12941:1998 Respiratory protective devices- Powered filtering devices incorporating a helmet or hood- Requirements, testing, marking.

● TH3 P R (SL) classification of the unit. “TH3” defines the level of protection, “P R” indicates the filter type (“P”= Particle filter, “R”= Reusable type of particle filters) and “SL” reflects the filter has been tested against particles of liquid and solid matter.

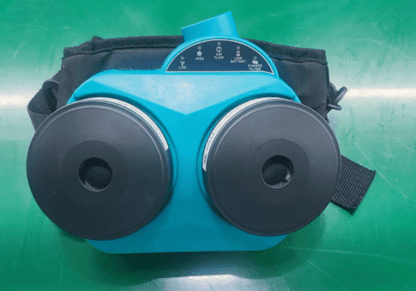

The package includes: 1. The air fed hood 2. The respiratory protection system (turbo unit + filter + waist belt) 3. Lithium-ion battery 4. The tube, its anti-fire cloth and both end fittings 5. The shoulder harness 6. The air flow tester 7. The lithium-ion battery charger 8. The carrying bag 9. 2 x H14 Filters (Optional Chemical Filter Available)

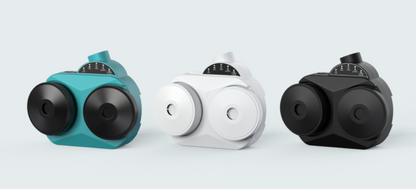

Size (Blower Assembly) 240mm x 165mm x 70 mm

Airflow Rates:

Level 1: 170L/min Level 2: 200L/min Level 3: 230L/min

Expected Battery Operation Time Standard battery 2600 Level 1>10h Level 2>8h Level 3>6h

Heavy Duty battery 3000 (optional) Level 1>15h Level 2>12h Level 3>10h

Battery Charging Time 3.5 Hours

Battery Life ≥ 500 Charges Run Time Dependent On Air Flow Rate and Filter Load.

LCD Display Air flow level and data Battery capacity Filter status

Belt Size 35-2/5 x 51-2/5 in. (900mm to 1300mm)

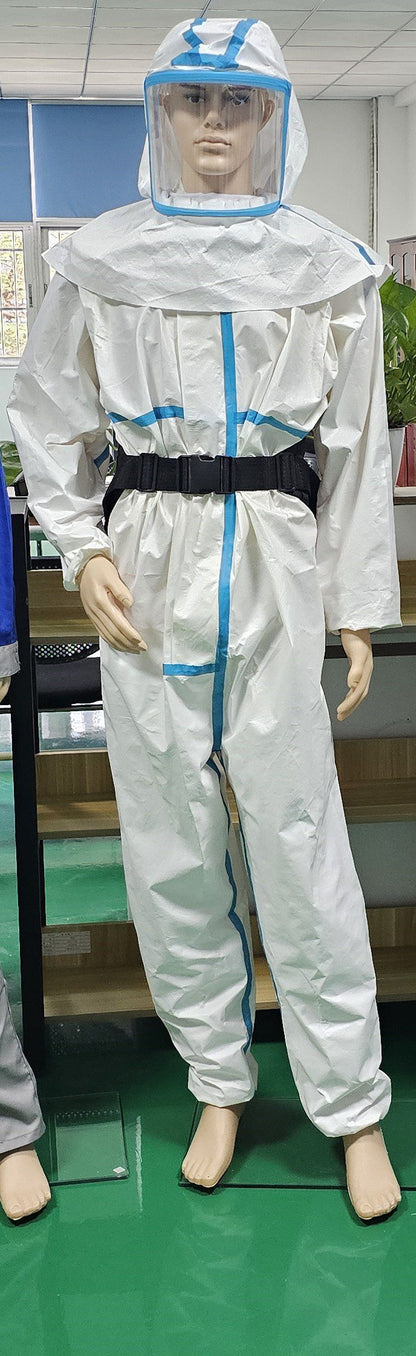

Please note overalls not included.

1 Year Parts and Labour Warranty on Motor unit
