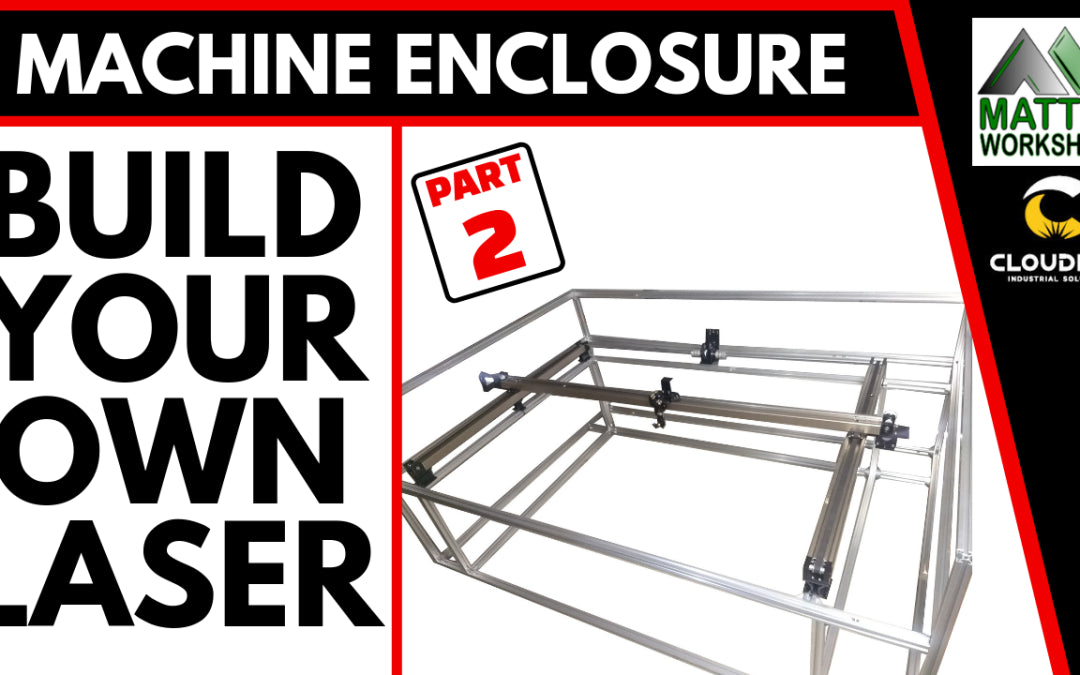

Build You Own Laser – Part 2 – CNC Laser Machine Frame

This Frame is still a work in progress so I will continue to add to this list until the project is completed.

–> DOWNLOAD A PDF COPY OF THE PLAN I STARTED WITH – https://cdn.shopify.com/s/files/1/0816/8249/7843/files/Frame5a.pdf

In my video

I show the design software (https://www.framexpert.com/) I used to create a plan and cutting list for the chosen material for the frame of my machine 3030 Profile Aluminium Extrusion T-Slot.

I sourced mine here in Australia from (http://www.mkalu.com/). I ordered Bolts, T-Slot Nuts and Brackets from MK Aluminium (you can order in Australia via eBay from MK Aluminium – https://www.ebay.com.au/sch/kunyuwa0/m.html )

I didn’t purchase enough nuts and bolts, so I also purchased extra bolts and T-Slot nuts online, below.

• 100PCS Post Assembly M5 T Nut for 3030 Aluminum Profile – https://amzn.to/2l9rGqx
•  M5 Metric Carbon Steel Tee Nuts Sliding T Nut for 3030 Aluminum Profiles – https://amzn.to/2XMtByE

I purchased additional M5 Bolts and Castors from The Fastener Factory

• Stainless Steel Screw M5 x 10mm x 100pc  – https://www.thefastenerfactory.com.au/stainless-steel-button-socket-head-cap-screw-m5-x-10mm-100pc
• https://www.thefastenerfactory.com.au/wheels/castor-wheels/plate-mounted-swivel-rubber-castors

I needed more corner angle brackets and found them a bit cheaper to order online.

• I ordered these Aluminium Profile Corner Bracket, 3030 Series L Shape Right Angle Connector, for Standard 8mm Slot Aluminium Extrusion Profile – https://amzn.to/2la1zQj
• I used mostly 3030 profile there are a lot of different connections available to suit your needs – https://amzn.to/2ldP9XL

Estimated Summary of Expenses
