DIY Laser - Part 5 – Tube Mounts & Mirrors

DIY Laser - Part 5 – Tube Mounts & Mirrors

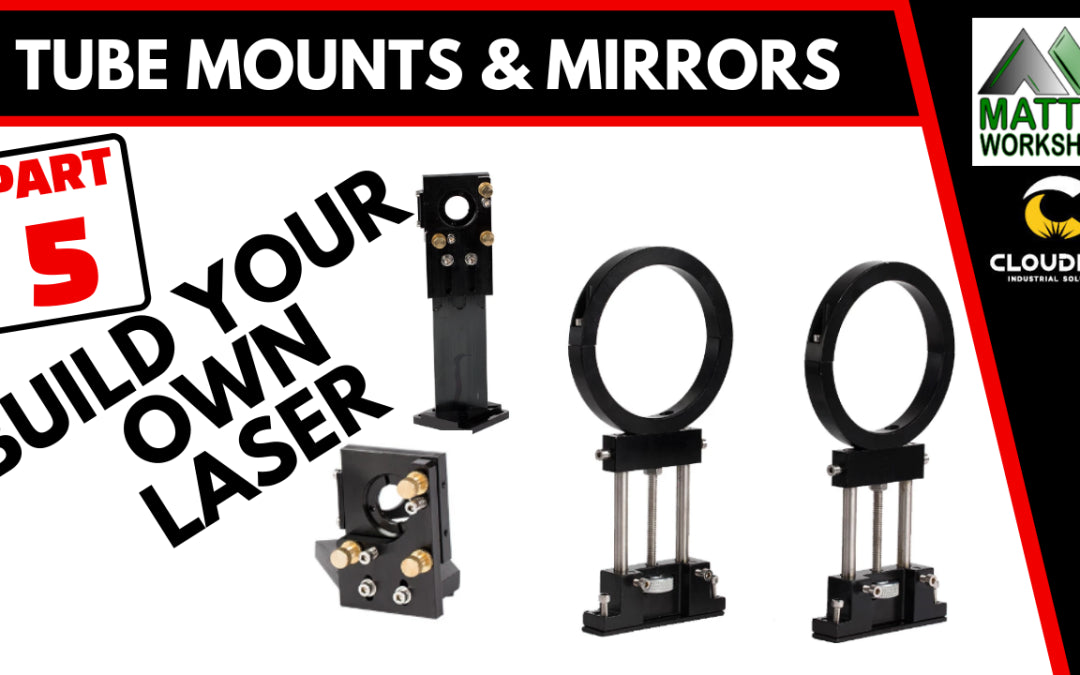

In my YouTube video I continue the Laser Build by installing the Laser Tube Mounts, and the Mirror mounts. I also install the stepper motors to the mounts on the X&Y Axis.

The mechanical parts I am using for this build are from Cloudray Laser

The Gas lift struts I ordered from AliExpress here (TYPE-L)

The stepper motors I use are Leadshine 573S15-L and 573S09-L (Click Image Links Below For More Info)

The Mechanical parts I used are from Cloudray – This set below is for the size I am building 1300x900mm cutting area. It comes with all mechanical components, laser lens head, mirror mounts, tube mounts stepper motor mounts, axis rails and timing belt.

Thanks for Visiting.
Until next time, take care
Cheers Matthew
